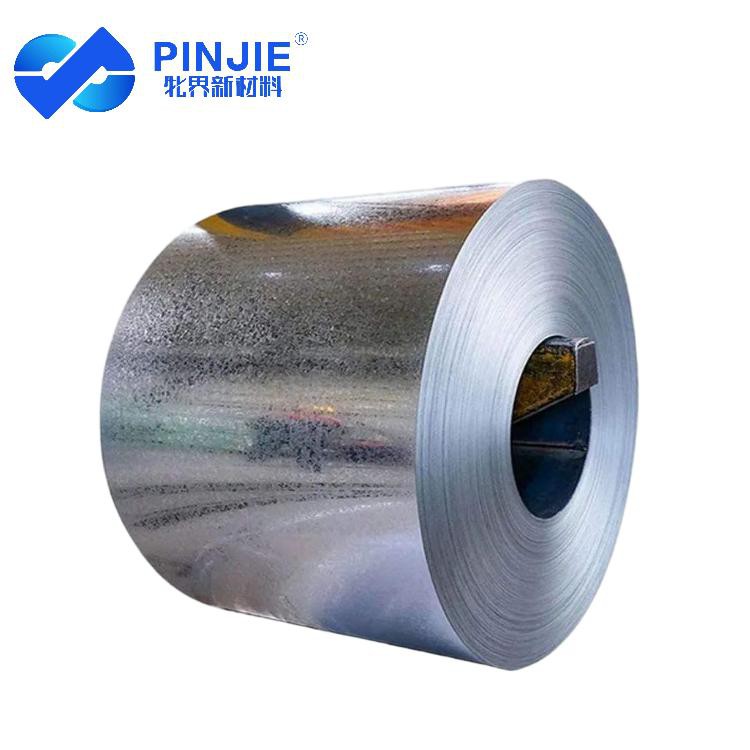

Product Overview
Galvanized Iron (GI) steel sheet is manufactured through continuous hot-dip galvanizing process, applying a uniform zinc coating on cold-rolled or hot-rolled steel substrate for superior corrosion protection. Spangle, the most distinctive surface feature of hot-dip galvanized steel, refers to the snowflake or hexagonal crystal patterns formed during zinc solidification.
Shandong Mujie Steel offers a complete range of galvanized steel products with Regular Spangle, Minimized Spangle, and Spangle-Free (Zero Spangle) options, precisely matched to your application requirements for appearance, paintability, and corrosion resistance.
Spangle Classification

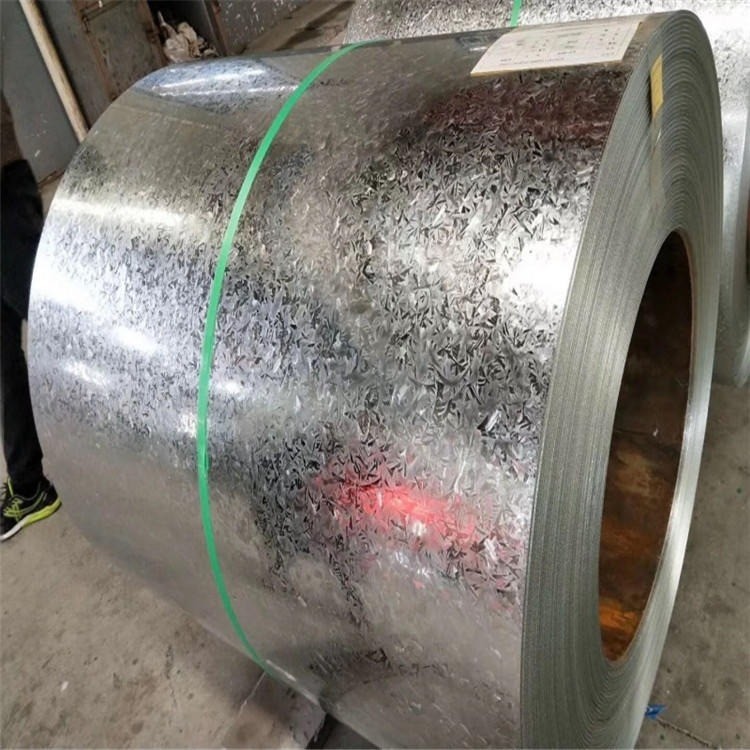

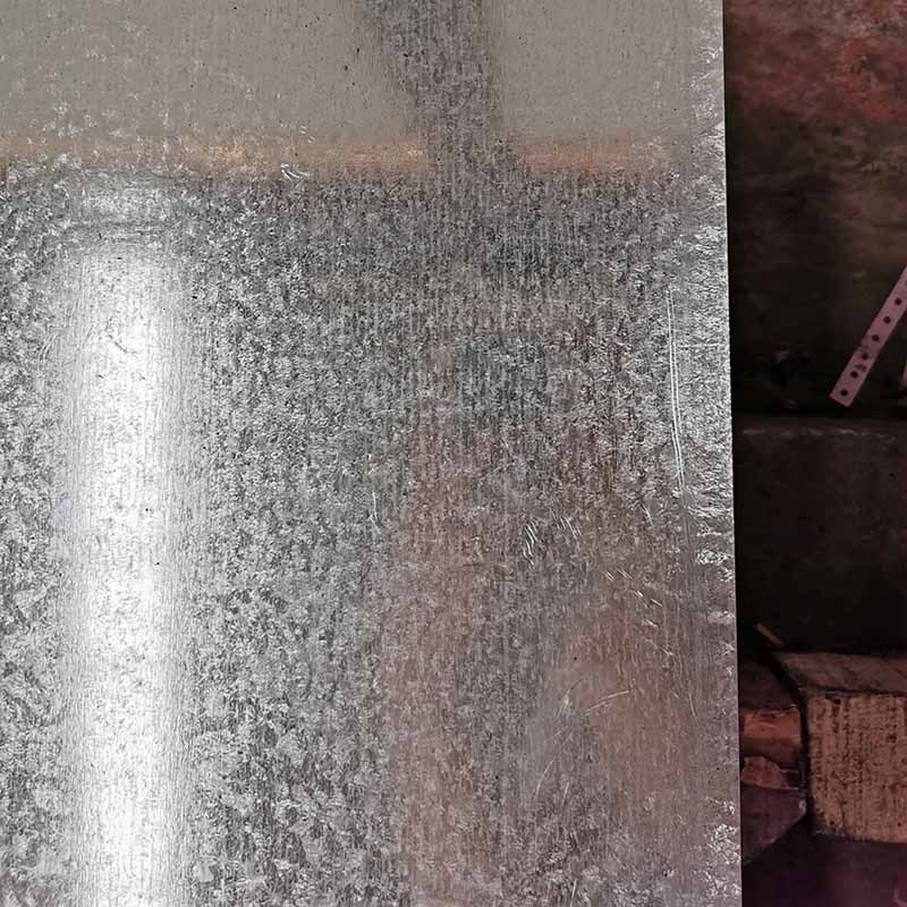

1. Regular Spangle (Normal Spangle)
Formation Principle:
Zinc bath contains lead (Pb) or antimony (Sb) as nucleating agents. After exiting the zinc pot, the strip cools naturally and slowly, allowing zinc atoms sufficient time to grow around limited nuclei, forming large, distinct snowflake crystal patterns.
Clear, visible hexagonal snowflake patterns
Bright metallic silver appearance
Surface roughness: Ra 1.5-3.0μm
Prominent grain boundaries with textured surface
Applications:
Simple factory roofing and cladding
Temporary fencing and hoardings
Storage tanks and pipe exteriors (non-painted)
Low-end hardware and agricultural greenhouse frames
2. Minimized Spangle (Small Spangle)
Formation Principle:
Water mist or ultra-fine zinc powder is sprayed onto the molten zinc surface immediately after the strip exits the zinc pot, artificially increasing nucleation sites. This limits crystal growth space and significantly reduces individual spangle size.
Surface Characteristics:
Fine, uniform spangle distribution
Individual crystals barely visible to naked eye
Surface roughness: Ra 0.8-1.5μm
Micro-crystalline texture visible under magnification
Key Advantages:
Paint performance zero spangle, no significant print-through
Excellent cost-performance ratio
Balanced appearance and corrosion protection
Applications:
Prepainted steel substrate for construction
General appliance enclosures
Standard structural steel components
Products with moderate appearance requirements
3. Spangle-Free (Zero Spangle)
Formation Principle:
Ultra-low lead content (<0.005%) in zinc bath, no antimony or other spangle-inducing elements. Ultra-rapid cooling after zinc pot exit completely suppresses zinc crystal nucleation and growth, followed by skin-pass rolling to eliminate micro-texture.
Surface Characteristics:
Mirror-smooth surface, no visible crystal patterns
Uniform silver-gray appearance with fine texture
Surface roughness: Ra ≤0.8μm
Stable friction coefficient for excellent formability
Core Advantages:
Superior paint adhesion with absolutely no print-through
Excellent precision stamping and deep-drawing performance
Most uniform corrosion protection, no grain boundary attack
Premium surface quality for high-end applications
Applications:
High-end home appliance panels (refrigerators, washing machines)
Automotive body panels and interior components
Precision electronic equipment enclosures
High-quality painted architectural facades
Food processing and medical equipment
✅ Complete Spangle Customization
Shandong Pinjie Steel provides regular/minimized/zero spangle full range products, supporting custom spangle size specifications for specialized industry requirements.
✅ Precision Process Control

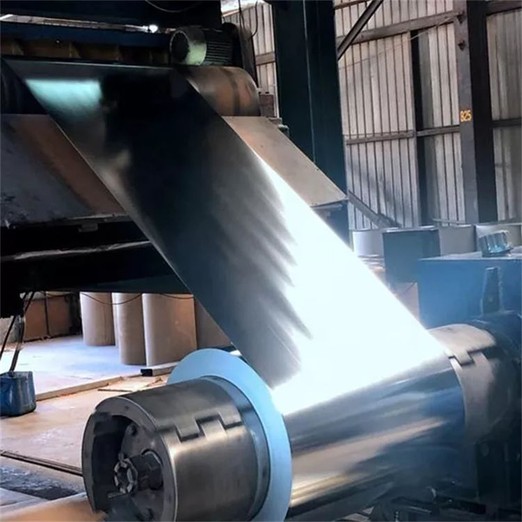

German-engineered continuous galvanizing lines ensure zinc coating thickness deviation within ±5g/m², spangle size consistency exceeding 98%.
✅ International Standard Certification
Products comply with ASTM A653, EN 10346, GB/T 2518 standards, with complete mill test certificates and inspection reports provided.
✅ Fast Delivery Guarantee

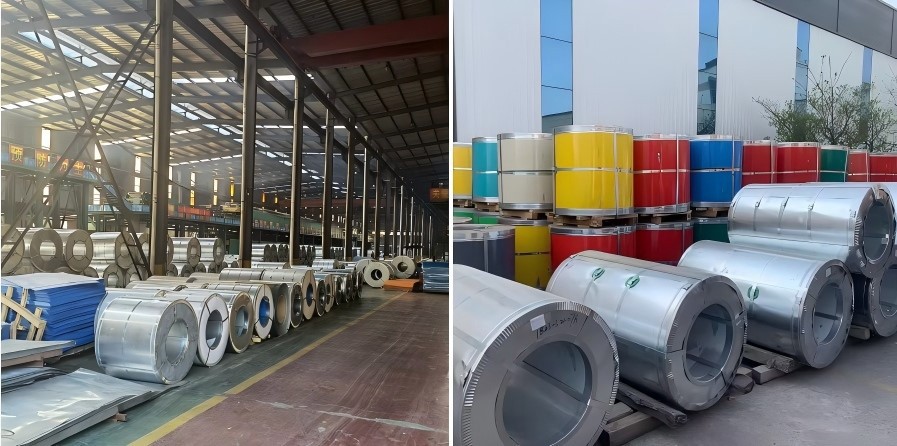

5,000+ tons ready inventory, standard specifications shipped within 3 days, custom orders delivered in 7-10 days, small trial orders accepted.
Frequently Asked Questions
Q1: Does spangle size directly affect corrosion resistance?
A: Spangle itself does not determine corrosion performance - zinc coating thickness is the primary factor. However, regular spangle has more grain boundaries which may become corrosion initiation points in extreme environments. Zero spangle offers the most uniform corrosion protection.
Q2: Which spangle type is recommended for painting applications?
A: Zero spangle is strongly recommended for high-quality painting applications to completely eliminate print-through. Minimized spangle offers good performance for general painting. Regular spangle is not recommended for direct painting.
Q3: Is zero spangle the same as electro-galvanized?
A: No. Zero spangle is still hot-dip galvanized, just with spangle eliminated through process control. Zinc coating thickness is much higher than electro-galvanized (typically ≥60g/m²).
Q4: Why is regular spangle popular in Southeast Asian markets?
A: Regular spangle offers lower production cost and clear price advantages, plus distinctive visual appearance for non-painted applications - ideal for cost-sensitive developing markets.
Q5: Can you produce custom spangle sizes?
A: Yes. Shandong Mujie Steel supports custom spangle specifications between 1-5mm. Minimum order quantity varies by specific requirements.
Company Introduction
Shandong Pinjie Steel Co., Ltd.
Shandong Mujie Steel is China's leading professional hot-dip galvanized steel manufacturer, specializing in R&D and production of high-end galvanized steel coils/sheets, prepainted steel, and galvalume products. Located in Boxing County, Shandong Province - China's steel industry hub, we operate two modern continuous galvanizing lines with 300,000 tons annual capacity.
Adhering to "Quality First, Service Supreme" philosophy, our products are exported to over 60 countries across Southeast Asia, Middle East, Africa, and South America, providing reliable steel solutions for global customers.
Our Strengths:
15 years professional galvanizing experience

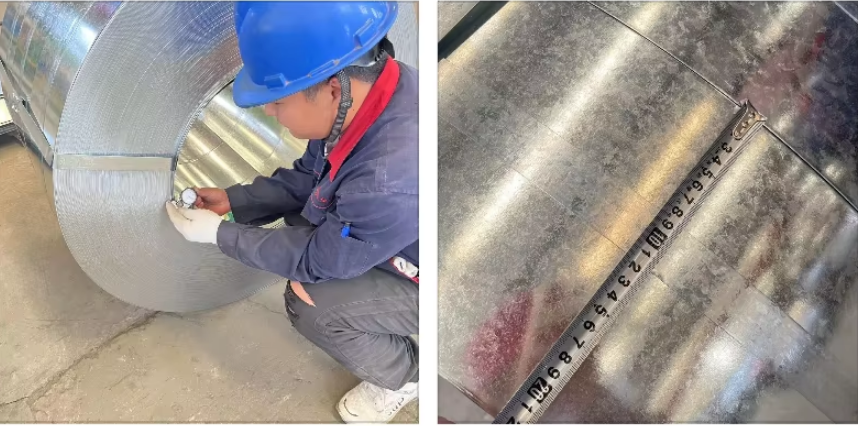

Complete quality control system
Flexible customization services
Professional international trade team

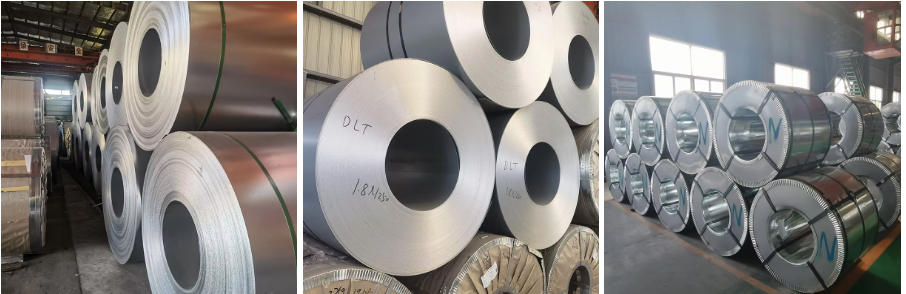

Specification Range:
Thickness: 0.11mm - 3.0mm
Width: 700mm - 1250mm
Zinc Coating: Z18 - Z275g/m²
Spangle: Regular(N) / Minimized(M) / Zero(O)
Packaging: Standard export seaworthy packaging with moisture-proof paper and steel wrapping, custom pallet specifications available.
