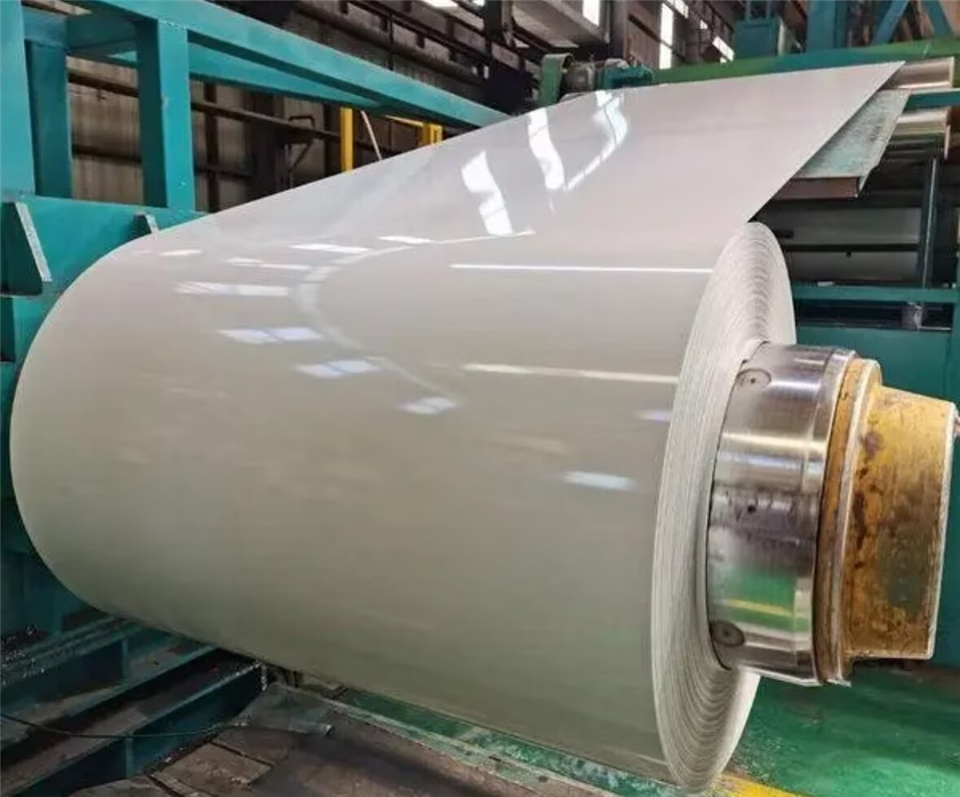

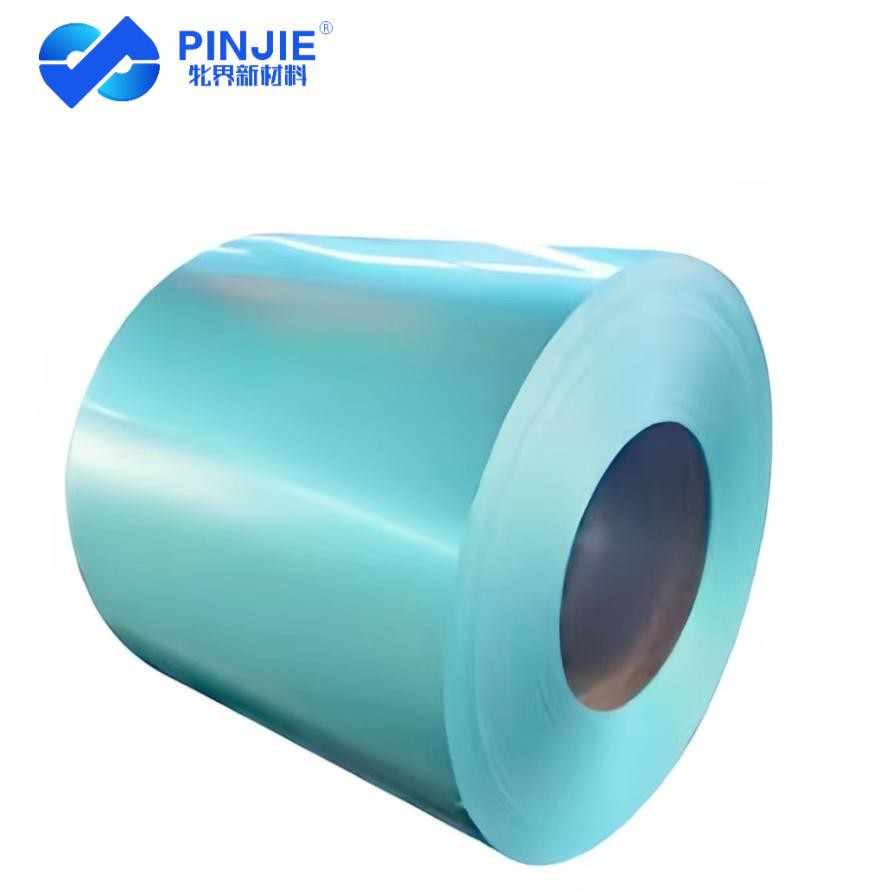

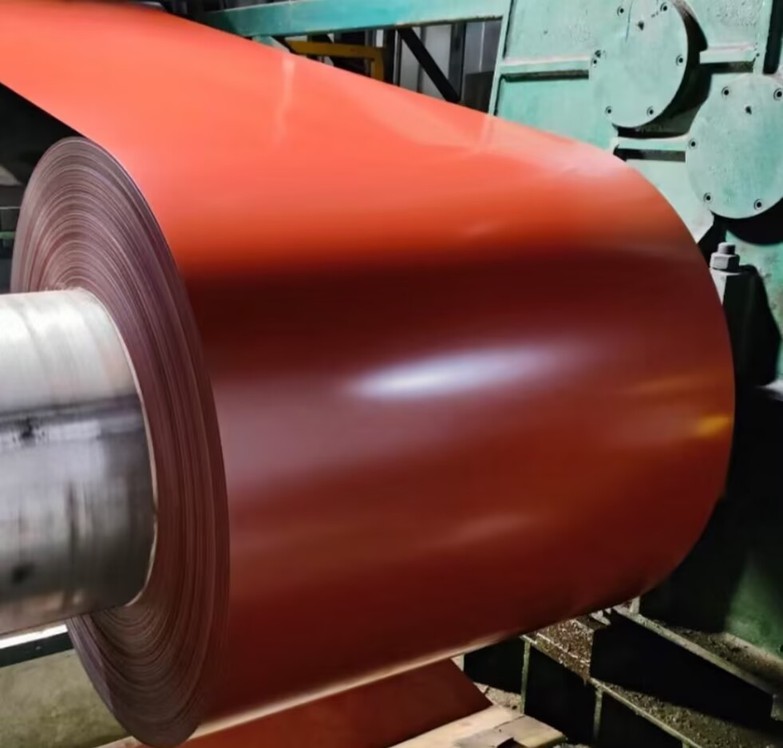

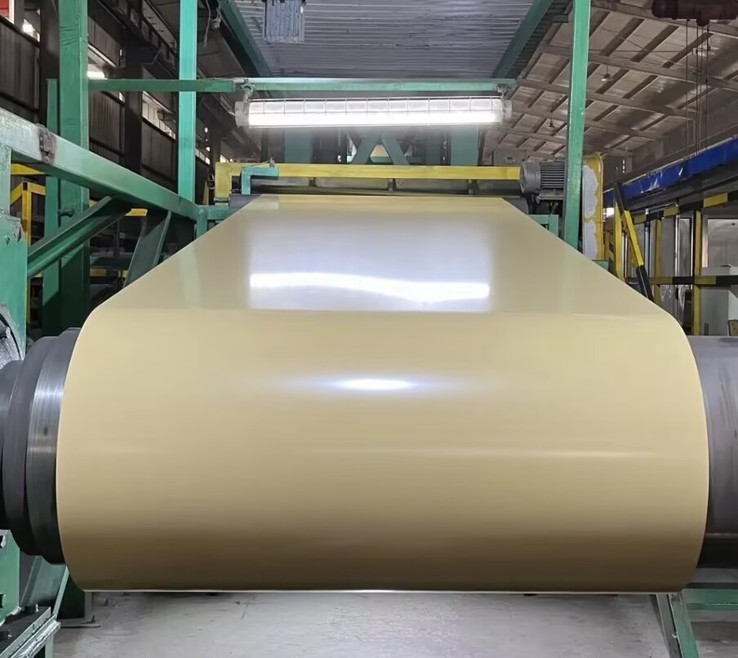

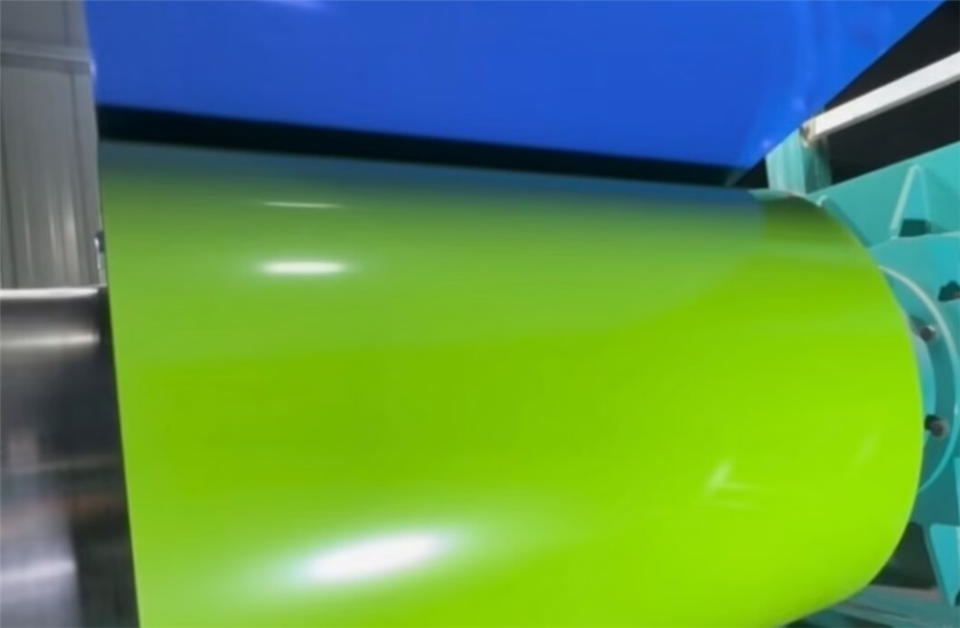

PVDF Coated PPGI PPGL Gi Coils For Building Facades

PVDF (polyvinylidene fluoride) coated steel coils are engineered for exterior applications where long-term performance matters most. The PVDF topcoat forms a dense, chemically stable film that shields the steel substrate from ultraviolet radiation, moisture, and atmospheric pollutants, preventing fading, chalking, and corrosion even under prolonged sun exposure. Recognized as one of the most weather-resistant organic finishes, PVDF delivers color and gloss retention that far outlasts conventional polyester coatings. This is why the product is widely specified for building facades, curtain walls, and cladding on commercial complexes, high-rise towers, airports, and industrial plants, where recoating is difficult and costly. The zinc or aluminum-zinc alloy base adds edge and scratch protection, while the smooth surface resists dirt and is easy to clean. With decades of expected color retention, the coils keep buildings looking new, cut maintenance costs, and perform reliably in coastal, high-UV, and other harsh climates.

 Proven long-term weatherability

70% PVDF fluorocarbon topcoat delivers 20–30 year outdoor service life with over 90% color retention at 10 years. Stable carbon-fluorine bonds resist UV degradation and chalking, meeting AAMA 2605 specifications for high-rise building facades.

 Dual-layer corrosion protection

1,500+ hour salt spray tested. PPGL / GI substrate combined with PVDF coating creates both barrier and sacrificial anti-corrosion effects, performing reliably in coastal, industrial and high-pollution environments.

 Consistent fabrication performance

0T–1T T-bend flexibility preserves coating adhesion through roll forming, bending and punching. Supports complex facade geometries without cracking, peeling or delamination during installation.

 Low-maintenance self-cleaning surface

Dense, low-surface-energy PVDF finish repels dust and pollutants. Rainfall naturally washes away surface dirt, reducing ongoing facade maintenance costs for building owners over the project lifecycle.

 High-rise commercial building facades

PVDF coated PPGI, PPGL and GI coils maintain tight color consistency (ΔE ≤ 1.0 per production batch) across large curtain wall expanses, supporting continuous panel installation for office towers, mixed-use complexes and retail centers. Their 20+ year UV-stable color retention and self-cleaning surface cut long-term exterior maintenance costs.

 Coastal and industrial building exteriors

Rated for 1500+ hours of salt spray resistance and Grade 8–10 anti-chalking performance, these coils withstand corrosive marine atmospheres and industrial emissions without premature fading or corrosion, suitable for port facilities, coastal industrial parks and heavy manufacturing plants.

 Public and landmark facade cladding

Offered in matte, embossed and custom stone/wood grain finishes with full RAL color matching, the coils support creative architectural design for convention centers, transport hubs and municipal landmarks, balancing premium aesthetic appeal with proven outdoor durability.

 Existing facade renovation

Lightweight and quick to install, the coils replace heavy stone or glass cladding systems to reduce structural load and speed up project delivery, minimizing on-site disruption - a cost-effective solution for urban renewal and building retrofit projects.

According to different usage environments and project requirements, we offer diverse product solutions.

 For projects in coastal areas or high-corrosion industrial environments, we recommend using PVDF coated products with a high zinc layer and aluminum-zinc substrate, such as AZ150 aluminum-zinc steel coil, to enhance the anti-corrosion ability and ensure long-term performance.

 For high-end architectural projects with extremely high requirements for color durability, we provide ultra-resistant PVDF coated products, which can ensure no fading or powdering for over 20 years, keeping the building in a brand-new appearance.

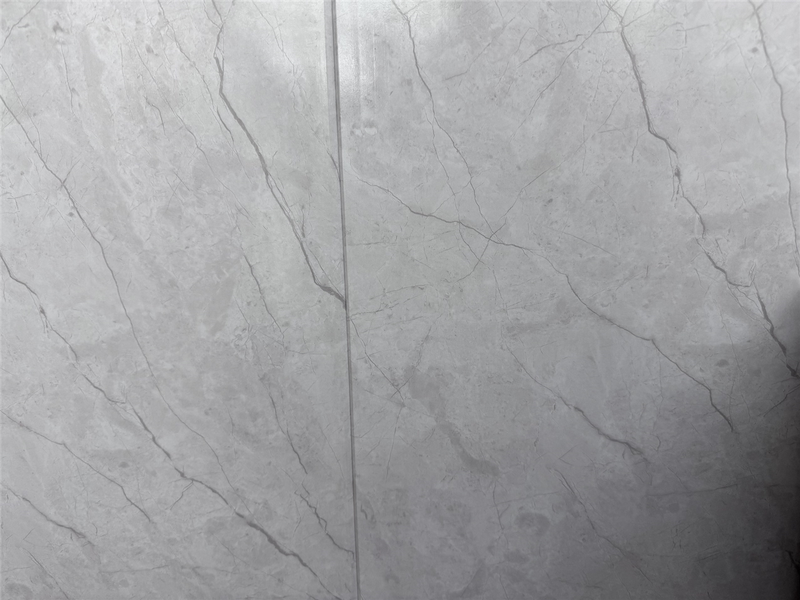

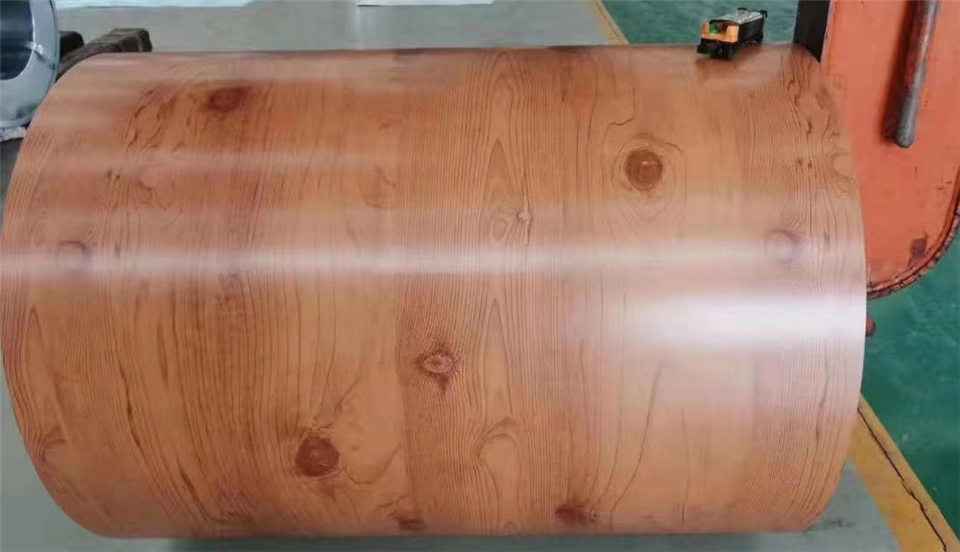

 For projects that emphasize decorative effects, we can offer PVDF coated products with special textures such as imitation marble, imitation wood grain, and imitation brick texture, maintaining the advantages of metal materials while presenting the texture and beauty of natural materials, significantly reducing construction costs.

 For small and medium-sized projects with limited budgets, we provide cost-effective standard-sized products, ensuring basic performance while helping customers control project costs. For large-scale engineering projects, we have stable production capacity and can ensure the timely supply of large quantities of products without affecting the construction schedule.

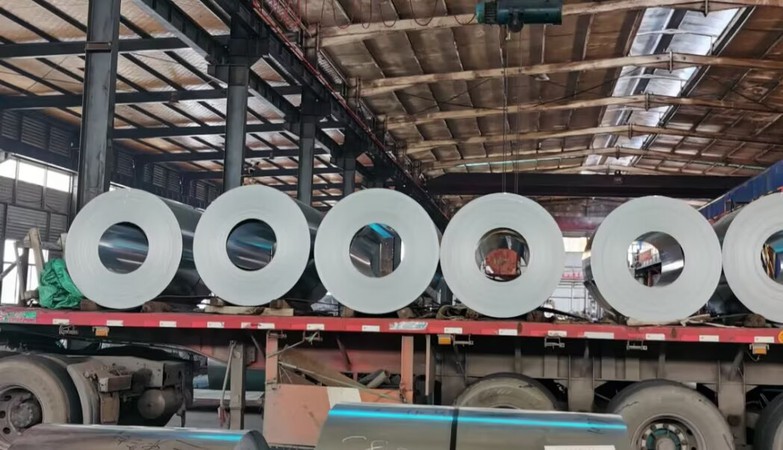

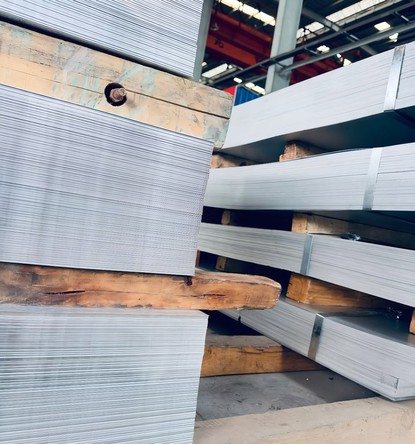

 Standard Packing: Waterproof and moisture-proof paper + steel strip fixing + solid wood pallet. This packing method guards against impact damage and moisture during transit, so products arrive in perfect condition.

 Lead Time: 7–15 days after deposit receipt; we can adjust the timeline based on your order quantity.

 Port of Loading: Qingdao Port, Tianjin Port, China

 MOQ: One full container; trial orders are open to discussion.

Our products have passed a number of international and domestic authoritative certifications, with guaranteed quality:

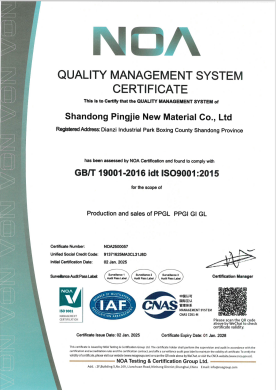

ISO 9001 Quality Management System Certification

CE EU Safety Certification

SGS/BV Third-party Test Report

RoHS & REACH Environmental Compliance Certification
