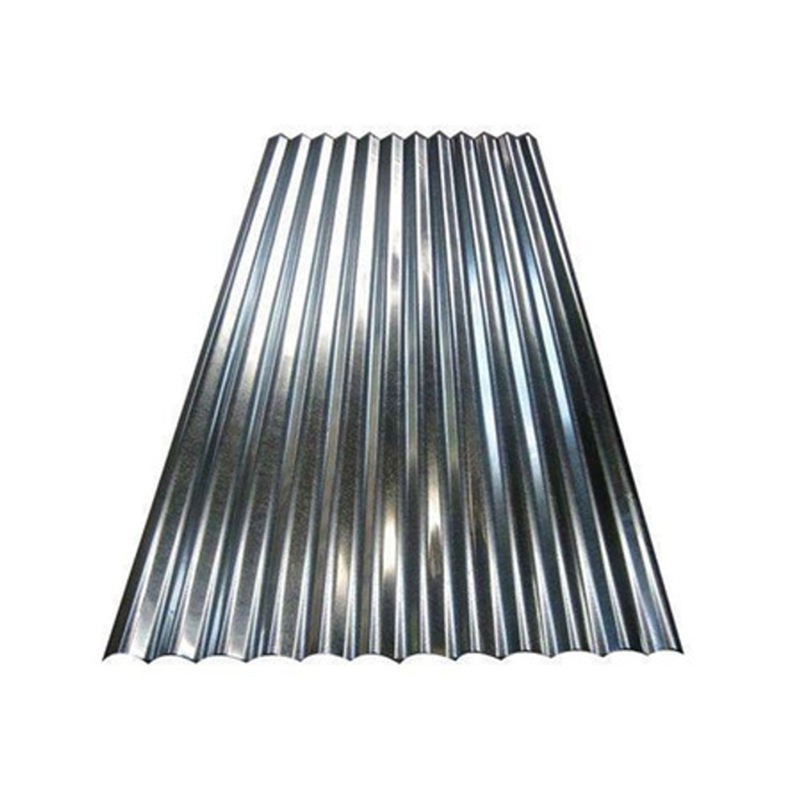

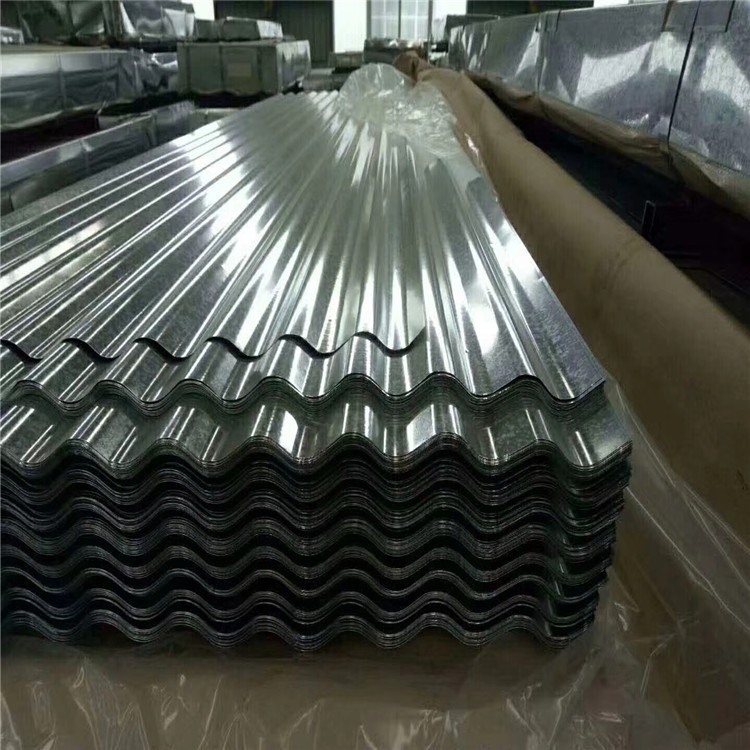

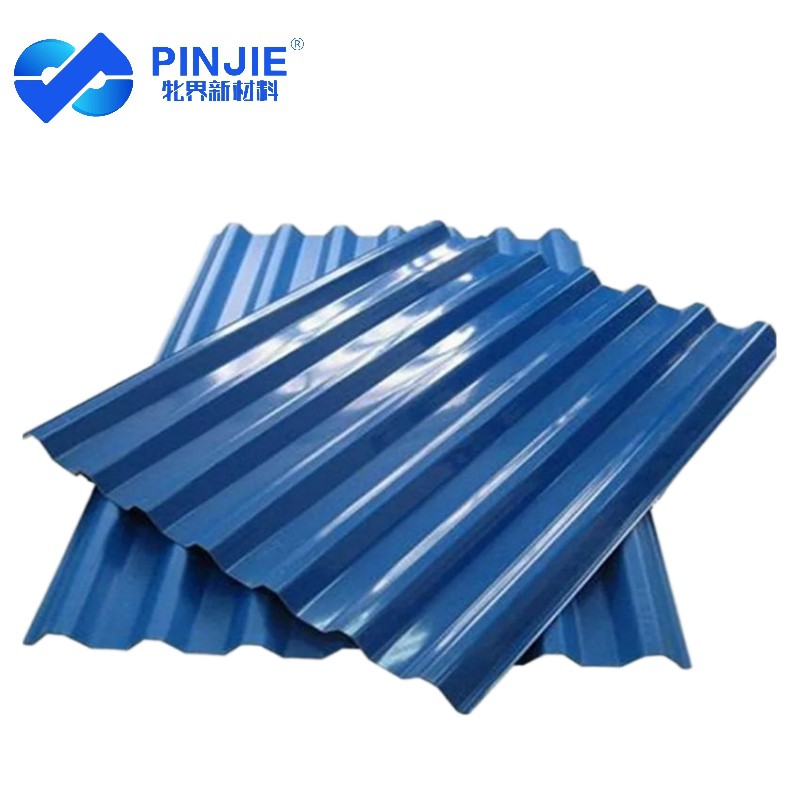

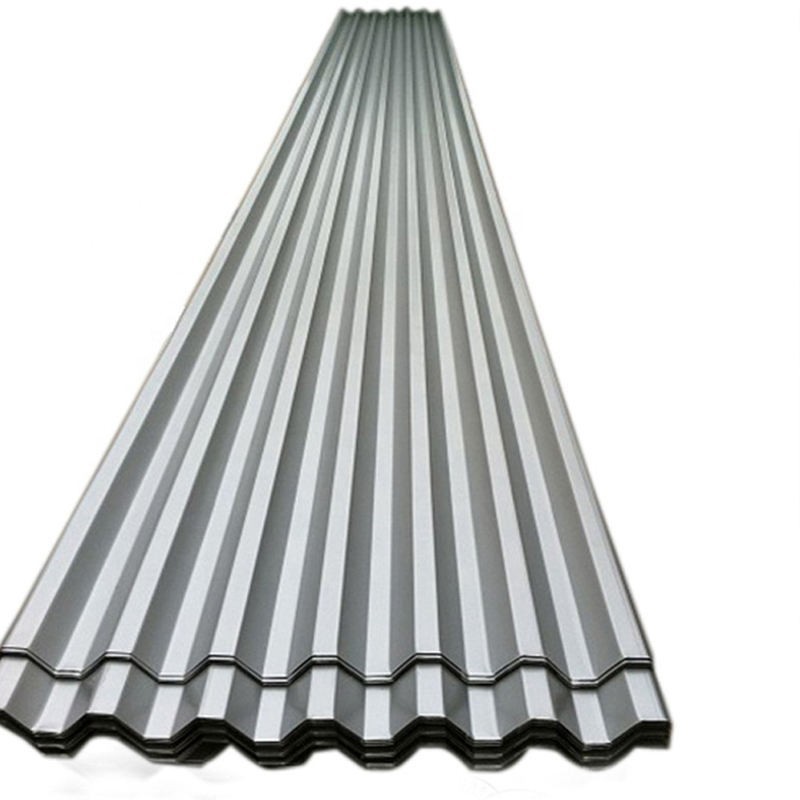

3.Export Quality Corrugated Galvanized Roofing Sheet Anti-Corrosion Steel Plate For Industrial Construction

Sino Steel corrugated galvanized roofing sheets utilize hot-dip galvanizing technology with thickness ranging from 0.12mm to 1mm and zinc coating weight between 30-275g/㎡. Compliant with ASTM, EN, GB, and AISI international standards, these sheets are widely applied in factory, warehouse, and commercial building roofing systems, delivering exceptional corrosion resistance combined with structural strength.

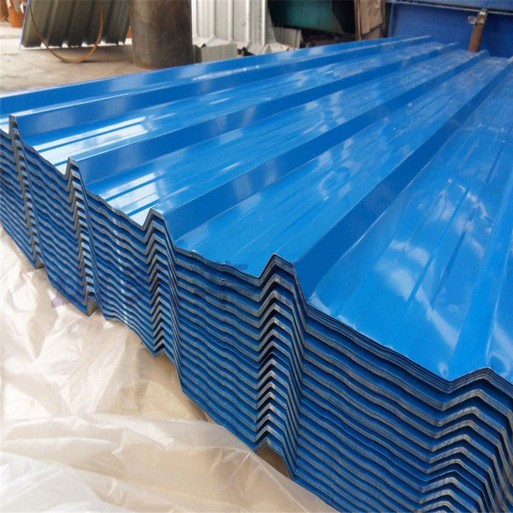

As a core material for building enclosure systems, corrugated galvanized roofing sheets acquire their distinctive wave profile through precision cold roll forming. This process significantly enhances overall bending load capacity while reducing self-weight. Leveraging the comprehensive steel supply chain in Boxing, Shandong, Sino Steel manufactures these products on continuous hot-dip galvanizing production lines, with stable exports to Southeast Asia, South America, Africa, and other international markets.

Unlike traditional roofing materials, the zinc coating acts as a sacrificial anode, providing comprehensive electrochemical protection for the base steel. Even if minor scratches occur during transportation or installation, the self-healing property of the zinc layer ensures corrosion does not spread inward. The corrugated design not only enhances structural rigidity but also creates natural water drainage channels, enabling rapid water runoff even on low-slope roofs of 5 degrees, effectively preventing water accumulation and leakage issues.

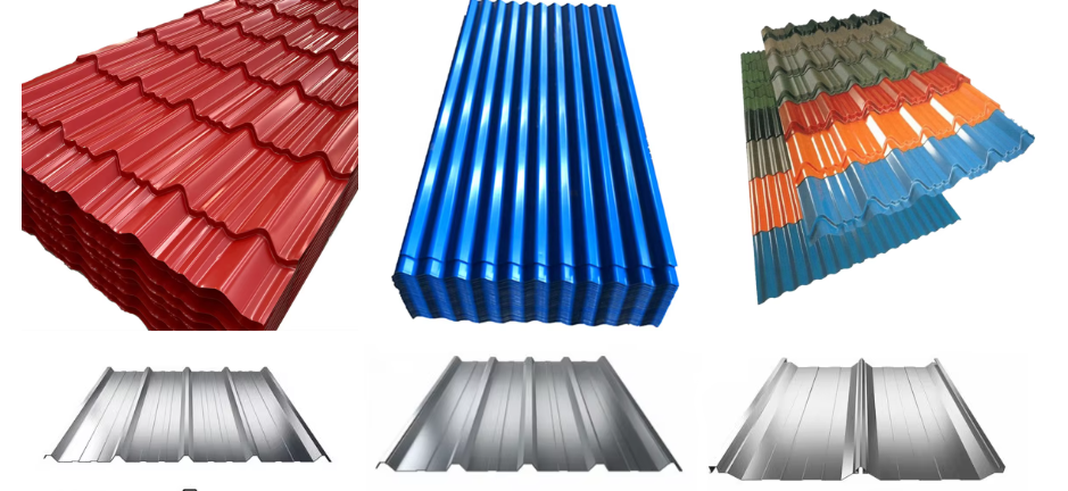

Note: Customized dimensions and surface treatment solutions available based on specific customer requirements

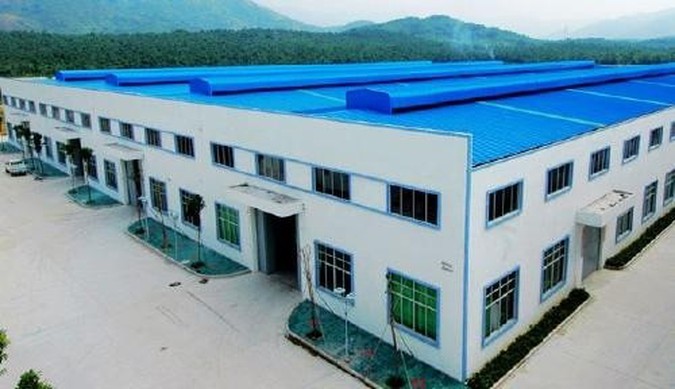

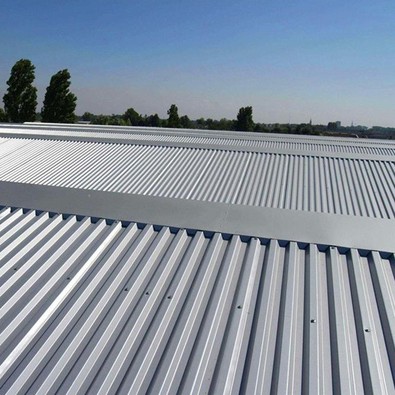

Industrial Building Roofing

Factories and Warehouses: G550 high-strength material combined with deep corrugation design withstands large-span roof loads and adapts to heavy machinery vibration environments, making it the preferred enclosure material for manufacturing plants and logistics warehouses.

Commercial Building Enclosure

Markets and Exhibition Halls: The smooth surface texture and uniform spangle appearance provide clean and aesthetically pleasing exterior effects for commercial buildings, while maintaining excellent cost-performance advantages.

Agricultural Facility Construction

Greenhouses and Livestock Farms: The corrosion resistance of the zinc coating adapts to corrosive media in agricultural environments such as fertilizers and livestock excreta, extending facility service life.

Temporary Construction Projects

Project Offices and Temporary Buildings: Lightweight material with quick installation capability and reusable disassembly features, particularly suitable for temporary office and accommodation buildings on construction projects, reducing temporary construction costs.

Q1: What is the service life corresponding to different zinc coating weights?

Zinc coating weight shows positive correlation with service life. In ordinary inland environments, Z80 coating provides 10-15 years of corrosion protection life, Z180 achieves 15-20 years, and Z275 high zinc coating configuration can exceed 25 years under normal maintenance. Coastal or industrial corrosive environments recommend at least Z180 or higher configuration.

Q2: What is the maximum safe span for corrugated sheets?

Span depends on sheet thickness, material strength, and load conditions. Taking 0.5mm thick DX51D material as example, under 0.5kN/㎡ snow load, maximum purlin spacing can reach 1.5 meters; G550 high-strength steel at the same thickness can increase span to 1.8 meters. Specific projects require special verification based on local wind and snow loads.

Q3: What key considerations during installation?

First ensure purlin flatness and spacing meet design requirements; lapping direction should be opposite to local prevailing wind direction; self-drilling screws should be installed at wave crest positions with aging-resistant rubber sealing rings; cut sheet edges should be painted with zinc-rich paint for rust prevention treatment.

Q4: How to distinguish hot-dip galvanized from electro-galvanized products?

Hot-dip galvanized products feature characteristic spangle texture on the surface, with thicker and uniform zinc coating; obvious zinc-iron alloy layer is visible at the cut section. Electro-galvanized surfaces appear brighter and smoother, but zinc coating thickness is usually only around 20g/㎡, with corrosion performance far inferior to hot-dip galvanized products, not recommended for outdoor roofing applications.

Q5: What causes white rust on roofing surfaces?

White rust is zinc oxide formed on galvanized coatings under humid and unventilated conditions, which is a normal phenomenon and does not affect core corrosion performance. Storage should avoid open-air stacking and maintain ventilation and dryness. Existing white rust can be wiped with dry cloth, and severe cases can be painted with special galvanized repair paint.

This page content is prepared by Sino Steel technical team. For technical consultation or sample requests, please contact the sales team for detailed information.
