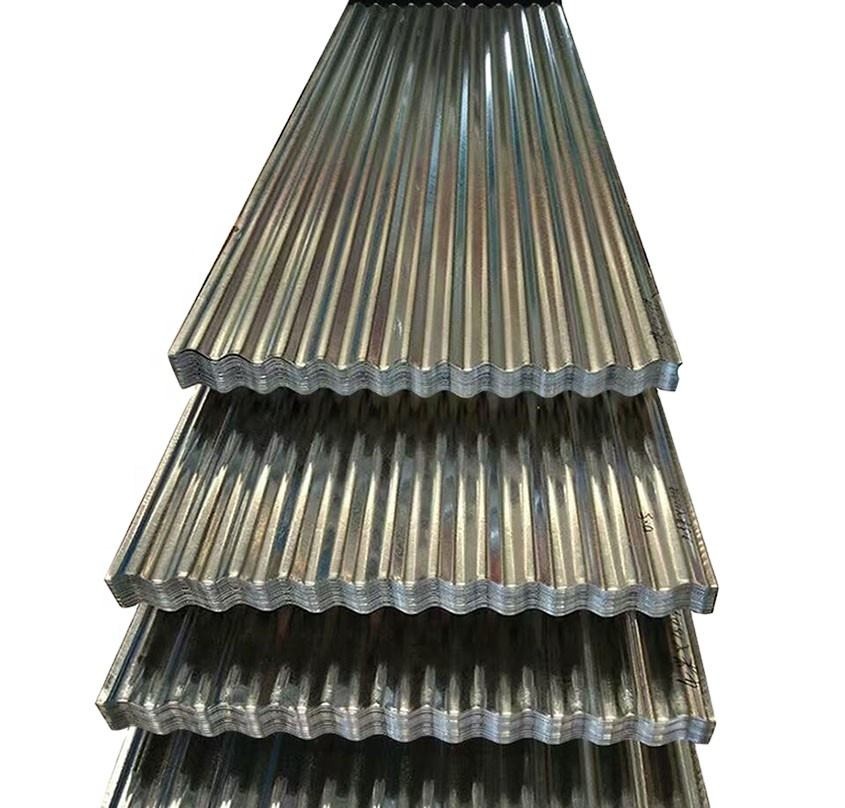

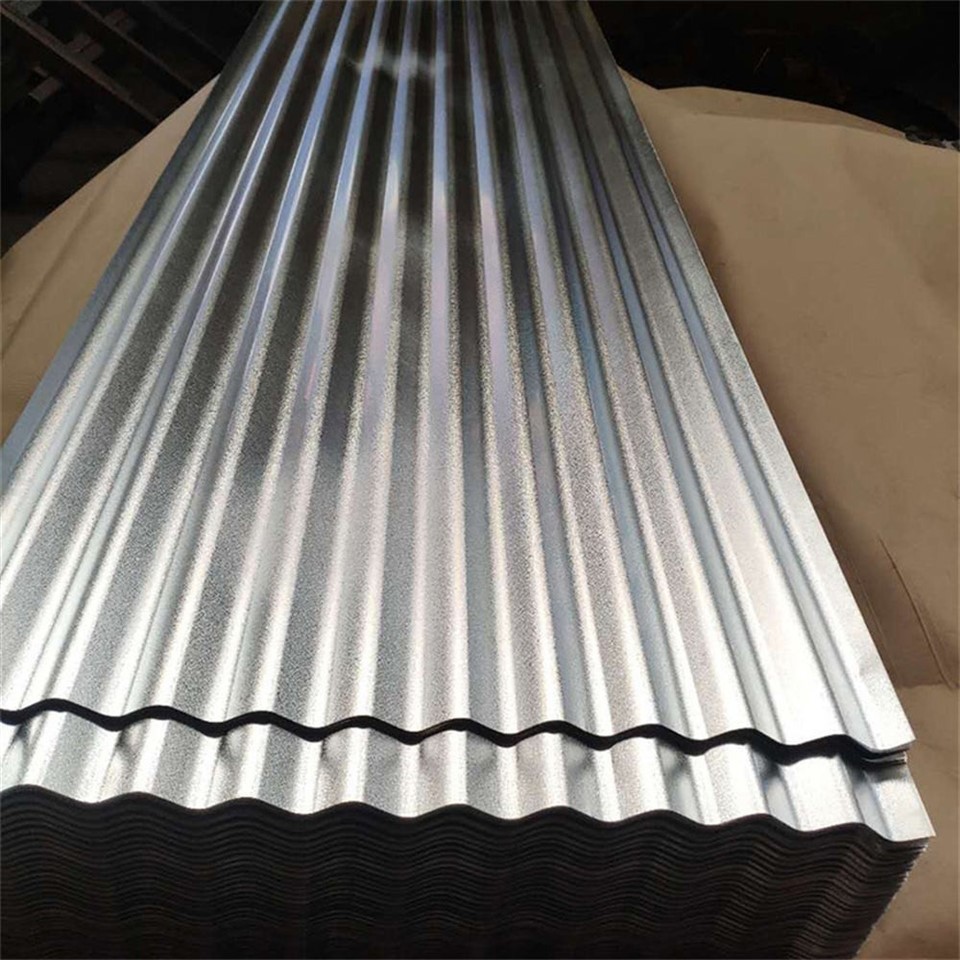

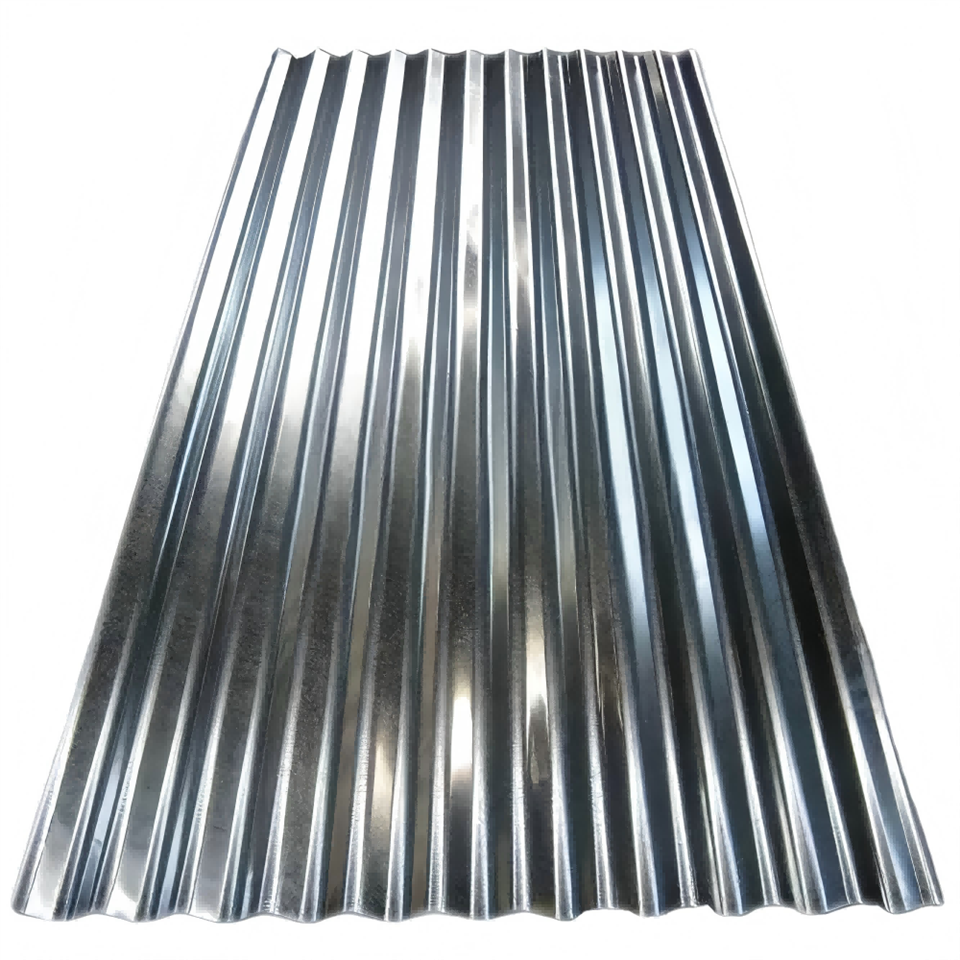

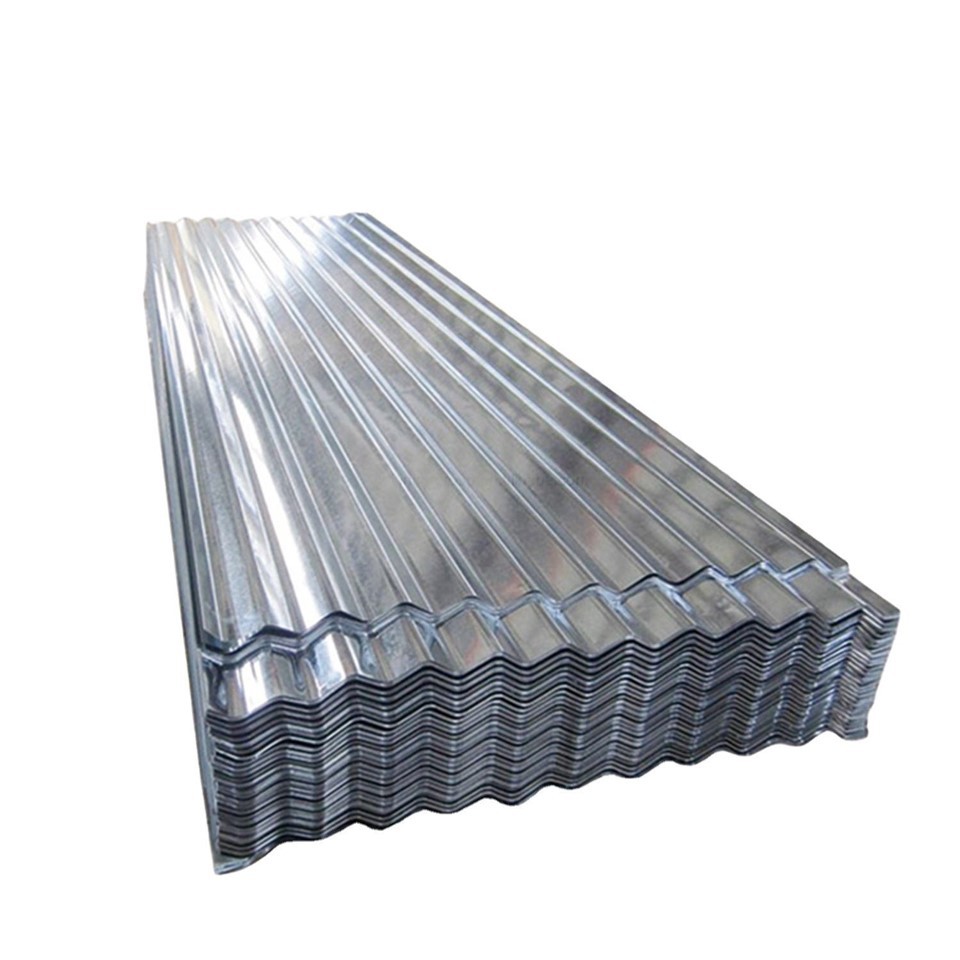

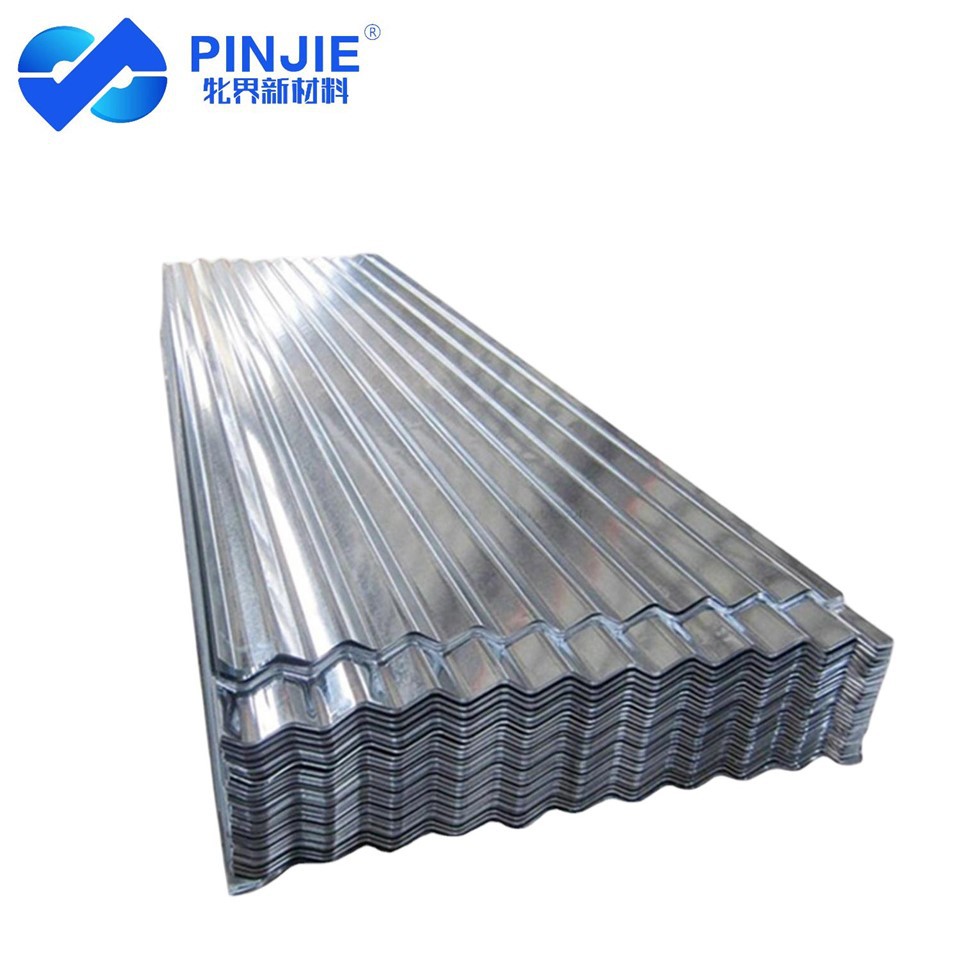

Galvanized Corrugated Roofing Sheet Z30-Z275 Zinc Coating

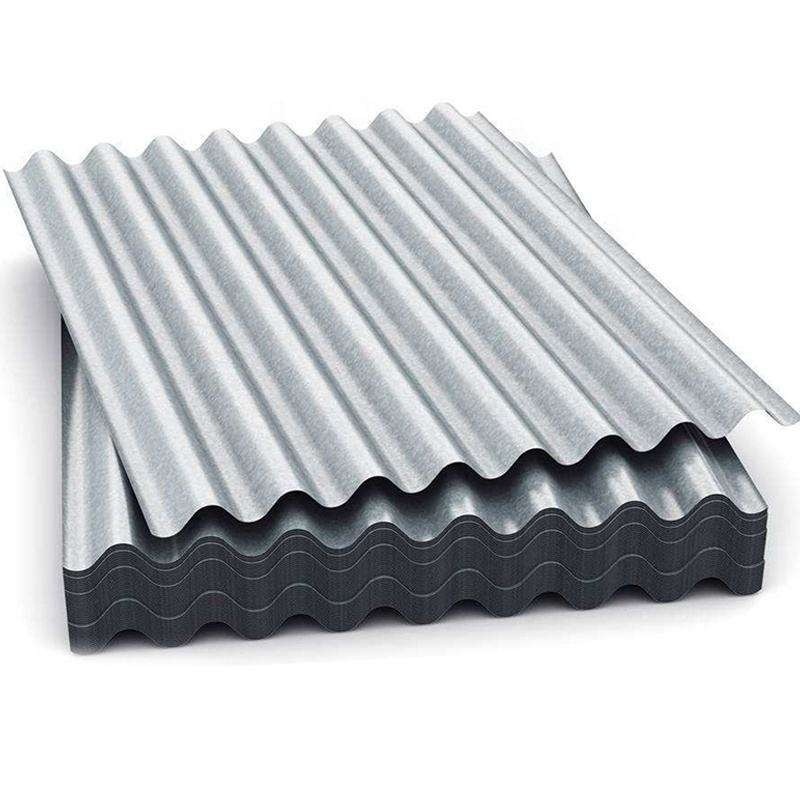

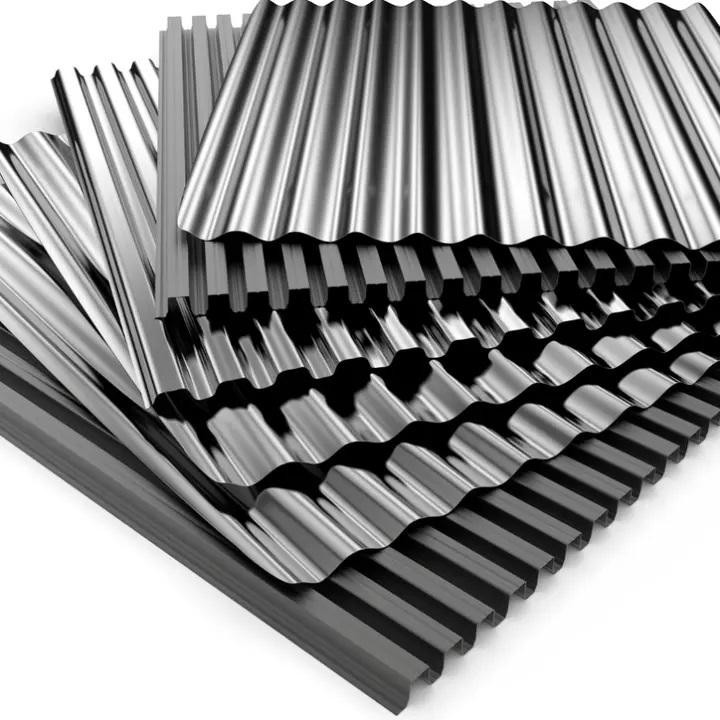

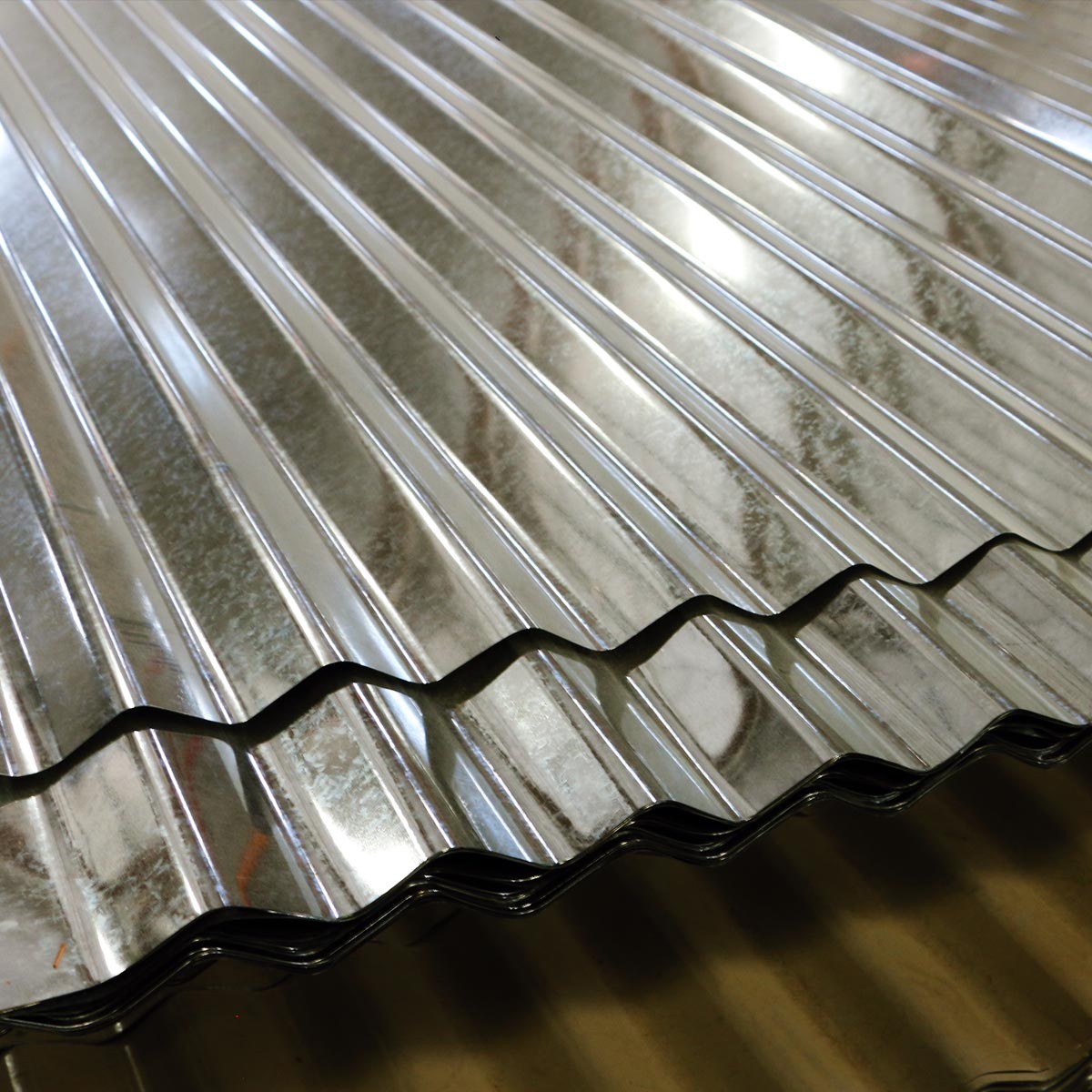

Galvanized steel roofing sheet is a corrugated metal roofing material manufactured from cold-rolled steel substrate, processed through hot-dip galvanizing and cold-forming technology. The zinc coating provides long-term corrosion protection through electrochemical mechanism, while the corrugated profile enhances structural strength while maintaining lightweight properties. As an advanced alternative to traditional roofing materials, this product delivers superior performance in weather resistance, installation efficiency, and life-cycle cost for various building envelope systems.

Corrosion Resistance

The hot-dip galvanizing process creates a metallurgical bond between zinc and steel substrate. Through sacrificial anode protection, zinc continues to protect adjacent steel even when scratched. Coating weight can be specified according to environment: Z180-Z275 recommended for coastal or industrial areas, providing 15-25 years service life under normal conditions.

Structural Strength

Corrugated design significantly increases section modulus, delivering 3x higher bending resistance compared to flat sheets. G550 high-strength steel with optimized profile geometry allows wider purlin spacing, reducing secondary structure costs. The material withstands extreme wind and snow loads, meeting international building code requirements.

Lightweight Construction

Weight per square meter is only 1/5 of concrete tiles and 1/8 of clay tiles, significantly reducing structural load. This property makes it ideal for roof renovation projects where structural reinforcement would otherwise be required.

Installation Efficiency

Standardized modular design allows on-site cutting, drilling, and bending. Large sheet coverage area enables professional teams to install over 500 square meters daily, substantially reducing project timelines.

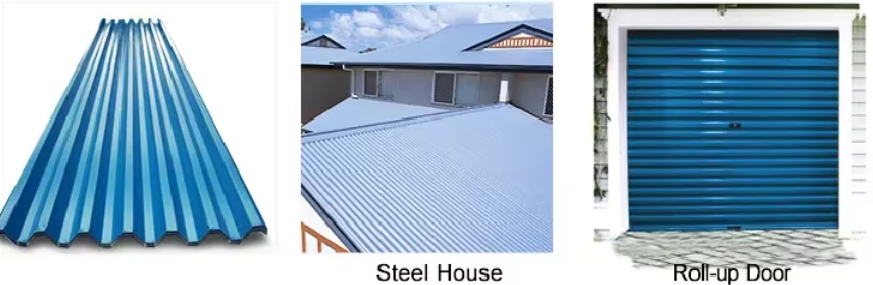

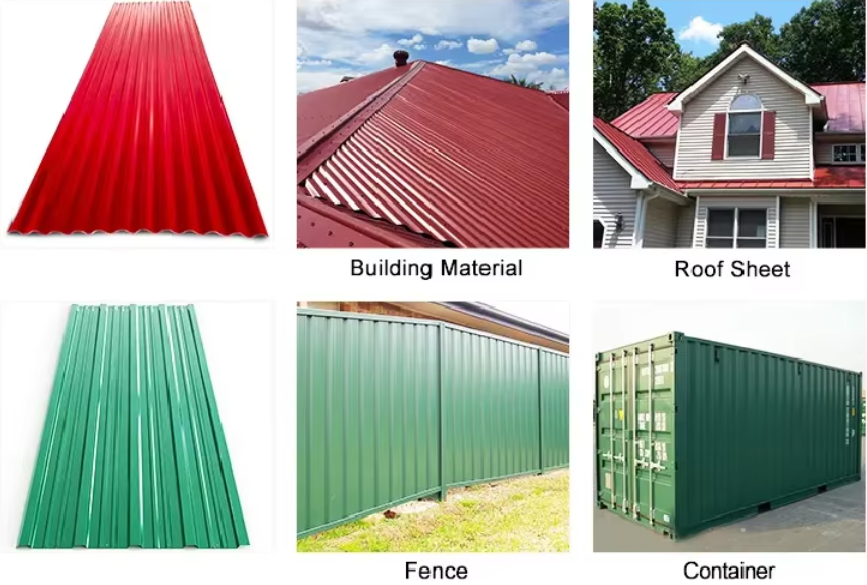

Industrial Facilities: Manufacturing plants, workshops, and industrial buildings with large-span steel structures

Warehousing & Logistics: Distribution centers, cold storage facilities, and bonded warehouses

Prefabricated Buildings: Container houses, temporary offices, and modular construction

Agricultural Structures: Greenhouses, livestock shelters, and farm storage buildings

Residential Construction: Rural housing, villa roofing, and slope conversion projects

Manufacturing Process

Surface Preparation: Cold-rolled steel undergoes alkaline cleaning and acid pickling to remove oil and oxides.

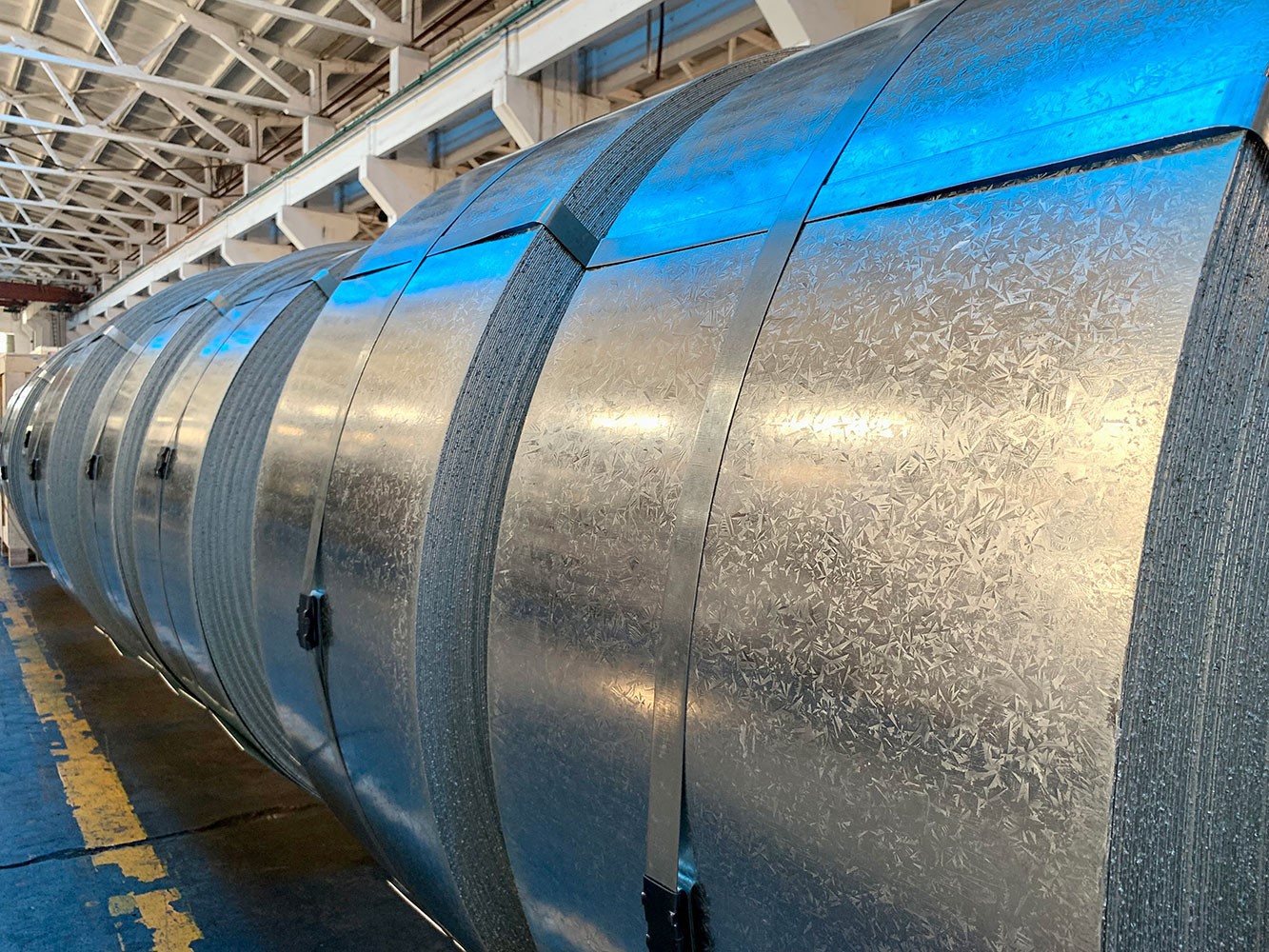

Hot-Dip Galvanizing: Continuous immersion in 460°C zinc bath forms uniform zinc-iron alloy layer and pure zinc layer. Air knife precisely controls coating thickness.

Cooling & Passivation: Rapid cooling followed by chromate-free passivation enhances surface stain resistance.

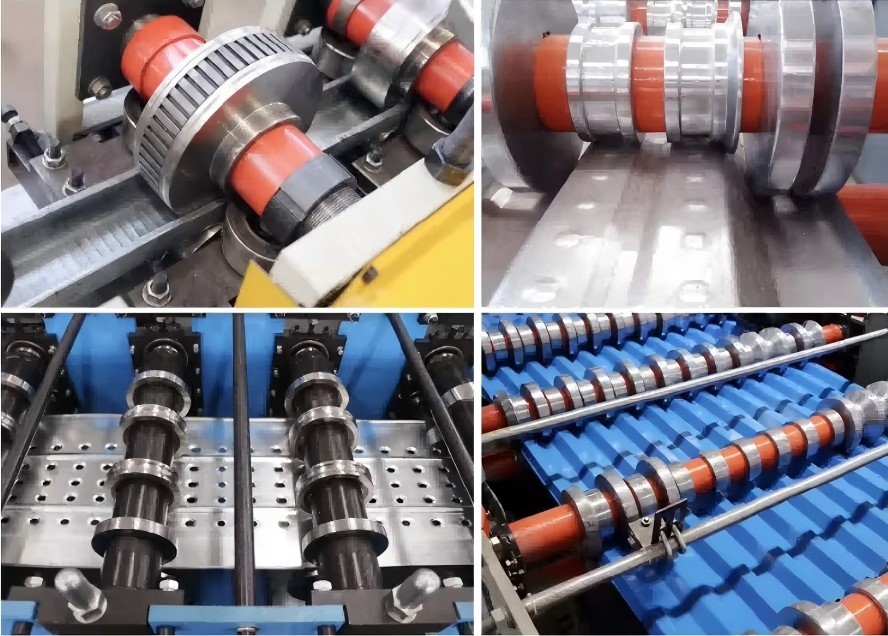

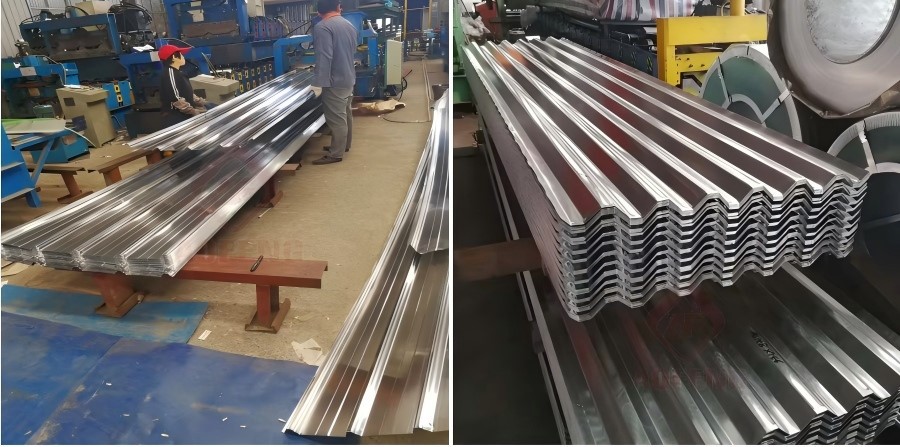

Cold Roll Forming: Continuous roll forming creates corrugated profile with dimensional accuracy within ±0.5mm tolerance.

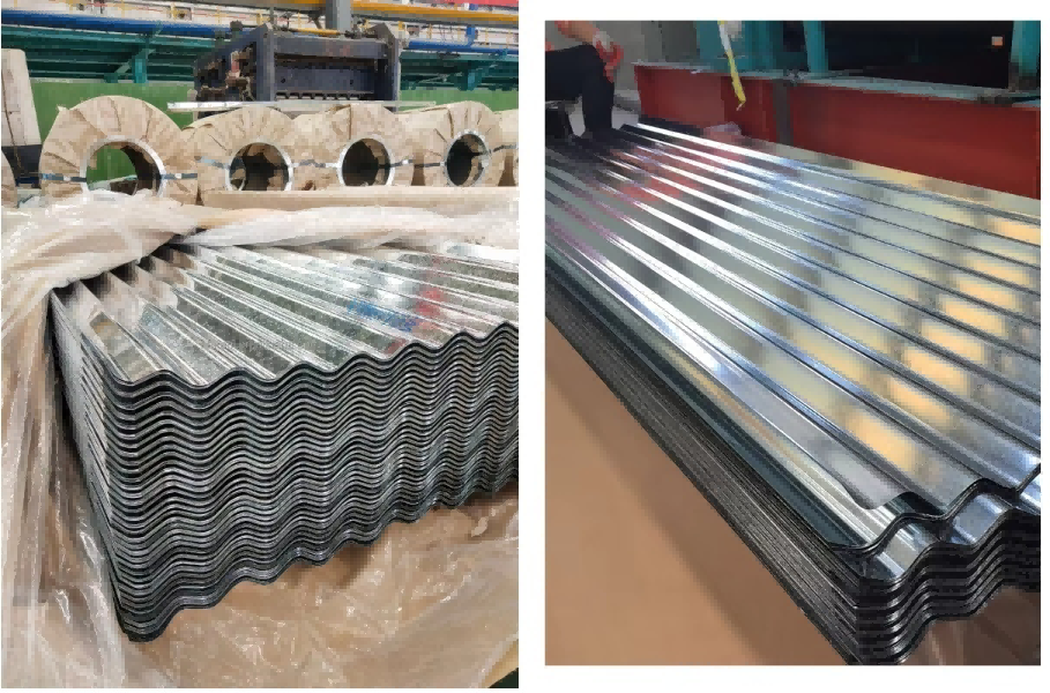

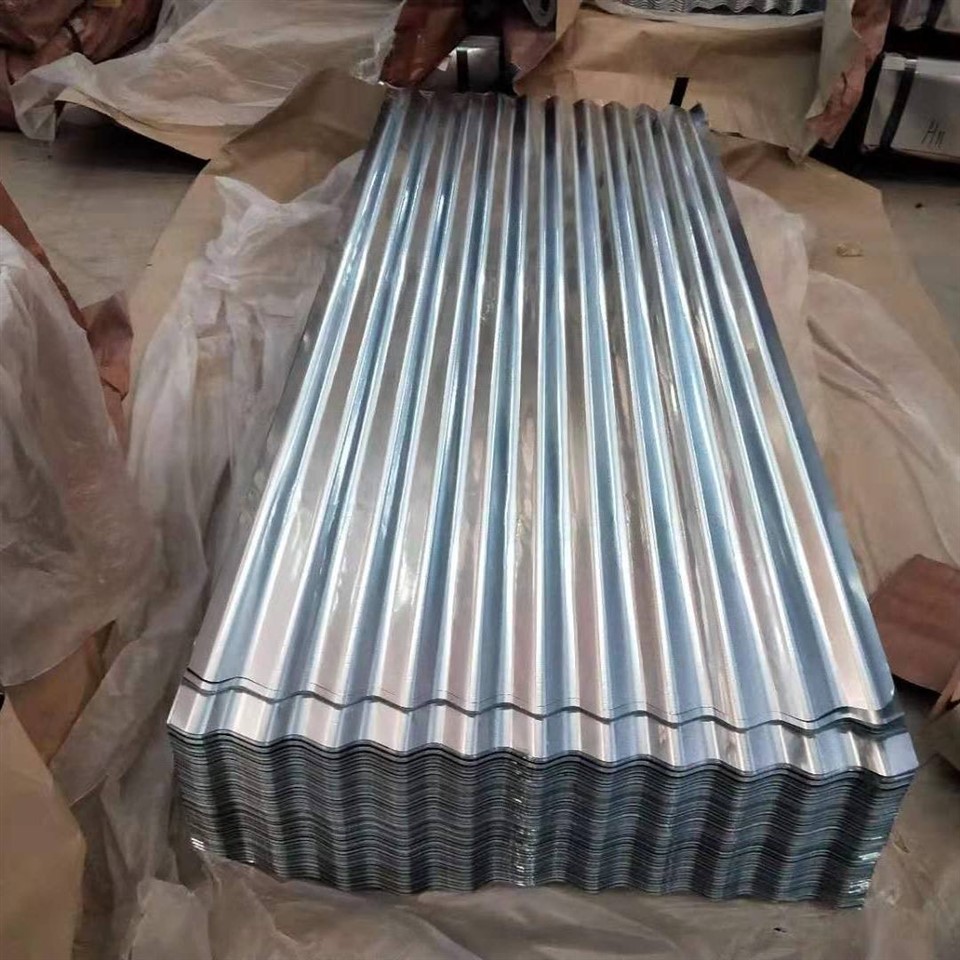

Quality Inspection & Packaging: Visual and dimensional inspection, followed by moisture-proof packaging with edge protection.

Purlin Spacing: Maximum purlin distance based on thickness and load calculation. 0.5mm sheets require maximum 1.5m purlin spacing.

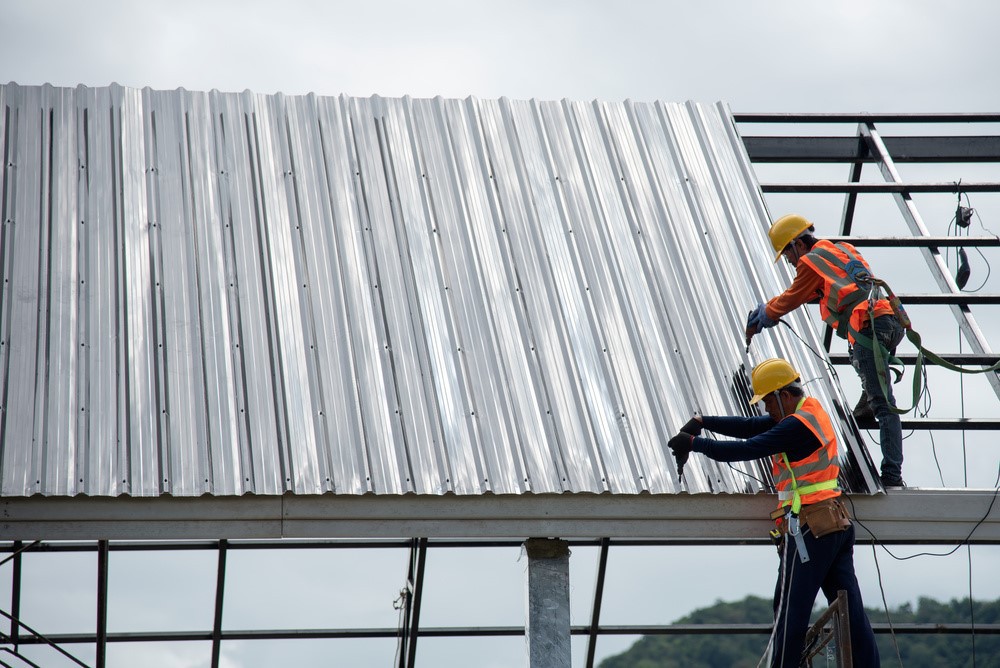

Fasteners: Use galvanized or stainless steel self-drilling screws with EPDM washers. Install one fastener per crest - never fasten through valleys.

Lapping Requirements: Minimum 250mm end lap, minimum 1.5 corrugation side lap. Apply neutral sealant at joints - avoid acidic silicone.

Worksite Protection: Use walking boards to prevent crest deformation. Cut with electric or hand shears - never use flame cutting.

Post-Installation: Remove all metal shavings to prevent rust staining. Avoid heavy loads on completed roof.

Q1: What zinc coating weight should be specified for different environments?
A: Z30-Z60 for interior or temporary structures; Z80-Z120 for general inland residential use; Z180-Z275 recommended for coastal, industrial, or permanent buildings requiring 20+ year service life.

Q2: Does galvanized roofing experience condensation issues?
A: Metal roofing can condense under significant temperature differences. We recommend installing insulation and vapor barriers, or specifying anti-condensation coated products.

Q3: What is the sound insulation performance?
A: Bare galvanized sheets provide approximately 20-25 dB sound reduction. Adding insulation layers or acoustic felt can improve performance to 35+ dB for rain noise reduction.

Q4: Can galvanized sheets be installed over existing roofs?
A: Yes, this is common practice for roof renovation. Verify existing structural capacity and ensure proper drainage slope to prevent water trapping between layers.

Q5: How to repair scratches and rust spots?
A: Minor scratches can be touched up with zinc-rich paint. Rust spots require grinding to remove corrosion, followed by epoxy zinc-rich primer and compatible topcoat.
