How to Select the Right Galvanized Corrugated Sheet for Grain Storage Silos

Selecting wall sheets for a grain silo is a practical decision that links capacity, local climate and expected service life. Operators in Vietnam's Mekong rice areas, Nigeria's maize belts and Brazil's soybean zones routinely face the same three questions: how thick should the plate be, how much zinc is needed, and does corrugation height matter. The guidance below draws on capacity-to-thickness tables used by commercial silo fabricators and on coating recommendations verified in tropical projects.

Lateral pressure from stored grain is highest at the bottom. Coban Machinery and similar manufacturers publish preliminary ranges that most bolted silo projects follow:


• 100-ton silo: overall 1.0–2.0 mm
• 500-ton silo: 1.5–2.5 mm
• 1,000-ton silo: 1.5–3.0 mm (lower rings often thicker)
• 2,000-ton silo: 2.0–3.5 mm
• 5,000-ton and larger: 2.0–4.0 mm, sometimes with external stiffeners

Upper rings can remain thinner because hoop stress declines with height. In high-wind or typhoon zones along Southeast Asian coasts, designers commonly add 10–20 percent extra thickness or denser bolting. Always confirm that the quotation lists base-metal thickness separately from coating weight.

Zinc mass is measured as total coating on both sides. Approximate thicknesses are 19 µm per side for Z275, 31.5 µm for Z450 and 42 µm for Z600. Independent exposure data linked to ISO 14713 show average zinc loss of roughly 0.5 µm per year in clean rural air; the rate rises sharply with continuous humidity and salt.

Practical selection used across tropical markets:


• Dry inland farms: Z275 normally delivers 20–30 years.
• Humid tropical inland zones (Mekong Delta, southern Nigeria, northern Brazil rainy belts): Z450 is the usual minimum.
• Coastal terminals or sites with relative humidity regularly above 75 percent and salt spray: Z600 is preferred and can extend service life to 25–40 years.

A Z275 coating that performs well inland can show red rust within three to five years on a coastal or continuously wet site. Specifying heavier coating on a dry inland farm adds cost without proportional gain.

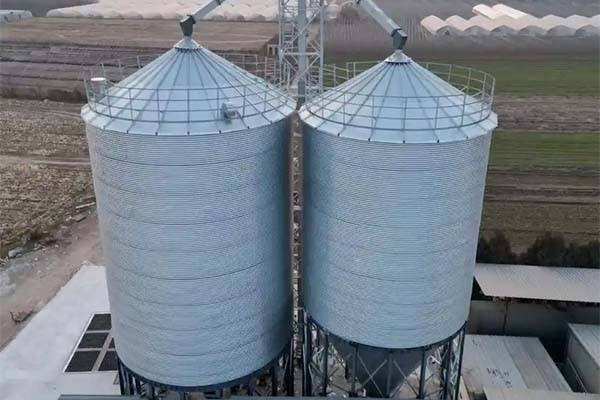

Standard agricultural corrugation depths (commonly 18–25 mm or deeper for larger silos) increase section modulus and improve drainage. Deeper profiles raise buckling resistance and help water run off the exterior, reducing prolonged wetness that accelerates zinc consumption. Combined with proper roof slope, sealed joints and free-draining base details, the profile supports both structural and corrosion performance.



A 1,000-ton maize silo in inland Vietnam or Ghana typically uses 1.5–3.0 mm plates with Z450 coating. The same capacity at a coastal Nigerian or Vietnamese port keeps the plate thicknesses but moves to Z600. A 5,000-ton commercial depot in a high-rainfall tropical zone commonly combines 2.0–4.0 mm lower plates with Z450 or Z600. Quotation documents should state base-metal thickness, zinc grade and corrugation height as separate line items.

When thickness matches capacity, zinc weight matches local humidity and salt load, and the corrugation profile supports both strength and drainage, a galvanized corrugated silo routinely reaches 25-plus years of low-maintenance service. Underspecifying any of the three parameters almost always reverses the economics once repair, downtime and grain-quality losses are counted.

For project-specific thickness and coating recommendations, request a quote.
